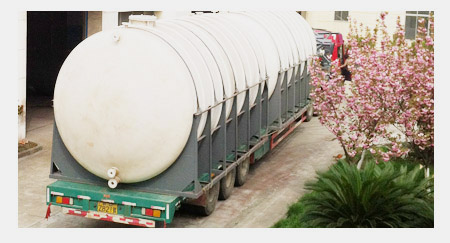

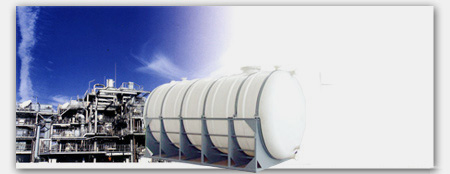

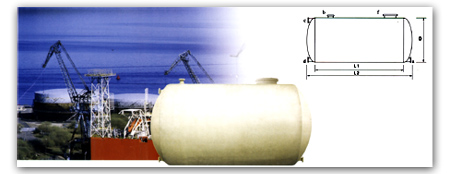

Horizontal polyethylene storage tank
Volume（m3）
DiameterD（mm）
LengthL1（mm）
LengthL2（mm）
Flange diameter（mm）
Manholef
Remarks
a
b
c
d
2
1250
1200
2400
50
50


400×500

3
1250
2300
3500
50
50


400×500

5
1500
2600
3300
65
50


400×500

6
1500
3400
4100
65
50


400×500

8
2000
2800
3500
65
50


450

10
2000
3200
3900
80
65
25
25
450

12
2000
3800
4500
80
65
25
25
450

15
2000
4800
5500
80
65
25
25
450

20
2450
4600
5200
80
50
40
40
450

25
2450
5600
6200
80
50
40
40
450

30
2450
6600
7200
80
50
40
40
450

40
3200
4400
5600
80
80
50
50
450

45
3200
5000
6200
80
80
50
50
450

50
3200
5600
6800
80
80
50
50
450
