Air flushing
type medium pressure filter |
■ Overview

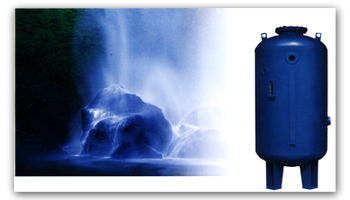

Air flushing type medium pressure filter
is mainly used for removing the suspended matter
in water. The filter is designed and produced by
special technology imported form USA PERMUTIT company.
The equipment is made of main body and inner filling
medium. The material of main body is: stainless
steel or high quality carbon steel etc. The material
of carbon steel shall have lining natural rubber,
which is called steel lining rubber, and equipped
with advanced double-dish water distributor in body.
It is usually filled multi-layer refined quartz
sand as filtering medium in the equipment. During
working, the raw water with pressure comes into
upper water-collecting chamber from top, then after
be uniformly filtered via medium layer, comes into
bottom water-collecting chamber to flow out the
equipment, finally to be filtering water. The equipment
is equipped with air flushing function, when regenerate,
backwash and flush the medium to purge the residual
dirt on medium and in bed layer, in order to remove
the dirt during backwashing, and improve the quality
of water output and prolong the work period of equipment.
This equipment can be assorted with condensation
injection system to form filtering system with stronger
function; however, it must have air flushing function,
otherwise the dirt adhered on medium and in bed
layer can not be removed.
■ Features：
□ Double-dish
water distributor, low resistance, uniform distribution；
□ The air
flushing function has increased the depuration rate
of backwashing, and the work period is long；
□ The special
layout of bed layer has such advantages as double
effect of withholding, absorbing, high filtering
efficiency and good filtering depth；
□ Inject
into system with coagulating agent, it is an another
characteristic is to further improve its power. |
| |
|
| |
|
| |
Specifications
Specifications
and models |
SF-300 |
SF-400 |
SF-500 |
SF-600 |
SF-700 |
SF-800 |
SF-900 |
SF-1000 |
SF-1200 |
Production stoodm3/h |
0.5 |
1.0 |
2 |
3 |
4 |
5 |
6 |
8 |
12 |
Loadkg |
500 |
800 |
1000 |
1500 |
2000 |
2500 |
3000 |
4000 |
6000 |
Specifications
and models |
SF-1400 |
SF-1600 |
SF-1800 |
SF-2000 |
SF-2200 |
SF-2400 |
SF-2600 |
SF-2800 |
SF-3000 |
Production stoodm3/h |
15 |
20 |
25 |
30 |
40 |
45 |
55 |
65 |
75 |
Loadkg |
8000 |
10000 |
12000 |
14000 |
16000 |
19000 |
22000 |
26000 |
30000 |
Other parameter table
Name |
Shell material |
Work pressure |
Table processing |
Handling appearance |
Chlorine agent
Model |
Media filter |
Stainless steel
or rubber lining |
0.4MPa |
Rubber lining
or polishing |
Painting or polishing |
Fine quartz sand |
|
|
|
|
